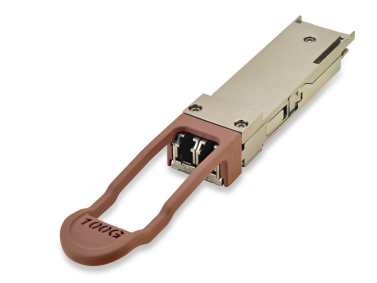

Actual product photos
available on request
To keep listings accurate, we share real photos of the exact FTLC1154RDPLD stock you will receive, including the label, serial number and packaging.
Request photos from our teamPhotos are usually shared within working hours on WhatsApp or email.
Finisar FTLC1154RDPLD 100G 4WDM eLR4 industrial QSFP28 20km
100 Gb/s 100G 4WDM eLR4 industrial temperature QSFP28 transceiver, LAN-WDM 1295-1310nm, up to 20km, industrial temperature.
- Manufacturer
- Coherent Corp. (formerly Finisar / II-VI)
- Mfr part number
- FTLC1154RDPLD
- Family
- FTLC1154
- Category
- Fiber optic transceiver modules
- Datasheet
- FTLC1154RDPLD datasheet (PDF)
FTLC1154RDPLD specifications
| Attribute | Value |
|---|---|
| Manufacturer | Coherent Corp. (Finisar) |
| Manufacturer part number | FTLC1154RDPLD |
| Product family | FTLC1154 |
| Form factor | QSFP28 |
| Standards / application | QSFP28 MSA; IEEE 802.3ba 100GBASE-LR4; IEEE 802.3bm CAUI-4 |
| Data rate | 103.1 Gb/s aggregate; 4x 25.78125 GBd |
| Wavelength | 1294.53–1296.59 / 1299.02–1301.09 / 1303.54–1305.63 / 1308.09–1310.19 nm |
| Laser | 4x25Gb/s DFB-based LAN-WDM transmitter |
| Receiver | 4 photodetectors, 25.78 Gb/s each |
| Reach | 10 km SMF (C/D suffix: 20 km eLR4) |
| Connector | Duplex LC |
| Tx output power | −4.3 to 4.5 dBm avg per lane |
| Rx sensitivity | −8.6 dBm OMA per lane |
| Rx overload / max input | Damage threshold 5.5 dBm per lane |
| Extinction ratio | 4 dB |
| Supply voltage | 3.3 V (3.135–3.465 V) |
| Power dissipation | < 3.5 W (RDPL4 / RDPLC: < 4.5 W) |
| Operating temperature | Industrial |
| Diagnostics | I2C management/diagnostics interface |
| Compliance | RoHS-6 |
| Lifecycle | Current production |
| Variant note | 4WDM eLR4 20 km, industrial temperature (EPS listing) |
Optical and electrical values are from the Finisar / Coherent family datasheet; temperature grade is per part number. Confirm critical values with us before ordering.
About the Finisar FTLC1154RDPLD
The Finisar FTLC1154RDPLD (now a Coherent Corp. product, formerly II-VI) is a QSFP28 100G 4WDM eLR4 industrial temperature optical transceiver for 100 Gb/s links at LAN-WDM 1295-1310nm over SMF duplex (LC), with reach up to 20km. It is an industrial-temperature part. It belongs to Finisar's FTLC1154 family, which has 13 orderable variants that differ by temperature grade, latch, receiver build or wavelength channel. Typical uses: 100G Ethernet data-centre fabrics, DCI, metro aggregation and InfiniBand EDR.
- Hot-pluggable QSFP28 form factor
- Adaptive CTLE
- 4x25G retimed electrical interface
- Single 3.3V power supply
- RoHS-6 compliant
FTLC1154RDPLD: frequently asked questions
What is the Finisar FTLC1154RDPLD?
The FTLC1154RDPLD is a Finisar QSFP28 transceiver for 100G 4WDM eLR4 industrial temperature at 100 Gb/s. Finisar is now part of Coherent Corp. (formerly II-VI), and the part number is unchanged. It is used for 100G Ethernet data-centre fabrics, DCI, metro aggregation and InfiniBand EDR.
What is the maximum distance of the FTLC1154RDPLD?
The FTLC1154RDPLD is specified for up to 20km over SMF duplex (LC). Long-reach optics may need an attenuator on short links; we can advise based on your link loss.
What is the optical power budget of the FTLC1154RDPLD?
Per the Finisar family datasheet, the FTLC1154RDPLD transmits −4.3 to 4.5 dBm avg per lane and has a receiver sensitivity of −8.6 dBm OMA per lane. Maximum receiver input is Damage threshold 5.5 dBm per lane.
Does the FTLC1154RDPLD support DDM / digital diagnostics?
Yes. I2C management/diagnostics interface. Your switch can read live temperature, voltage, laser bias and Tx/Rx power.
Which fiber and connector does the FTLC1154RDPLD use?
The FTLC1154RDPLD works at LAN-WDM 1295-1310nm over SMF duplex (LC). Both ends of a link must use the same optical standard.
Will the FTLC1154RDPLD work in my Cisco, Juniper, Arista or HPE switch?
The FTLC1154RDPLD follows the QSFP28 MSA, so it fits any matching port. It carries Finisar's own EEPROM programming; switches that check the module vendor may need a configuration setting or a vendor-branded optic. Send us your switch model and we confirm before dispatch.
FTLC1154RDPLD vs FTLC1154RDPL: what is the difference?
Both are in Finisar's FTLC1154 family. They differ in reach (20km vs 10km); build / application (100G 4WDM eLR4 industrial temperature vs 100GBASE-LR4 Gen2). Pick the variant that matches your temperature, latch and wavelength needs.
What temperature range is the FTLC1154RDPLD rated for?
The FTLC1154RDPLD is an industrial-temperature part. Industrial grade suits outdoor cabinets, telecom huts and plant floors.
What does the FTLC1154RDPLD part number mean?
The FTLC prefix marks Finisar's 100G family (QSFP28 / CFP / CFP2 / CFP4). The I letter in the suffix usually marks the industrial temperature grade. The remaining characters identify the optical design and build variant.
Is your FTLC1154RDPLD genuine Finisar?
Yes. Next Gen Networks supplies original Finisar / Coherent modules, not third-party lookalikes or grey-market stock, and shares serial numbers on request.
What is the FTLC1154RDPLD price in India and how do I order?
The Finisar FTLC1154RDPLD price in India depends on quantity, delivery city and current stock. Next Gen Networks supplies it with a GST invoice (input tax credit ready) and pan-India dispatch from New Delhi. Send the part number, quantity and delivery city on WhatsApp +91-7827955775 or email Sales@nextgennetworks.in for a GST quote.
What power does the FTLC1154RDPLD need?
It runs from 3.3 V (3.135–3.465 V) with power dissipation of < 3.5 W (RDPL4 / RDPLC: < 4.5 W).
Documents
NextGen datasheetPDF · specs, FAQ & buying guideManufacturer datasheet
Finisar / Coherent family datasheet
