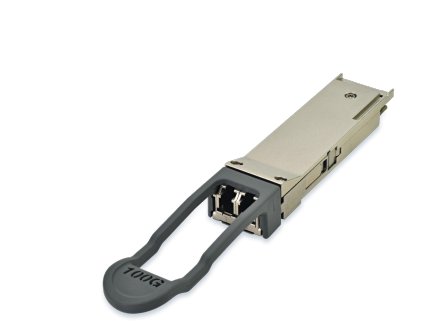

Finisar FTLC9152RGPL 100G SWDM4 QSFP28 100m
100 Gb/s 100G SWDM4 QSFP28 transceiver, SWDM 850-940nm, up to 100m (OM4) / 150m (OM5), commercial temperature.
- Manufacturer
- Coherent Corp. (formerly Finisar / II-VI)
- Mfr part number
- FTLC9152RGPL
- Family
- FTLC9152
- Category
- Fiber optic transceiver modules
- Datasheet
- FTLC9152RGPL datasheet (PDF)
FTLC9152RGPL specifications
| Attribute | Value |
|---|---|
| Manufacturer | Coherent Corp. (Finisar) |
| Manufacturer part number | FTLC9152RGPL |
| Product family | FTLC9152 |
| Form factor | QSFP28 |
| Standards / application | QSFP28 MSA; IEEE 802.3bm CAUI-4 electrical (100G SWDM4) |
| Data rate | 103.1 Gb/s aggregate; 4x 25.78125 Gb/s |
| Wavelength | 850, 880, 910, 940 nm |
| Laser | 4x25Gb/s 850 nm VCSEL-based transmitter (SWDM4) |
| Receiver | 4 photodetectors with 1:4 optical demultiplexer |
| Reach | 75 m OM3 / 100 m OM4 / 150 m OM5 (duplex MMF) |
| Connector | Duplex LC |
| Rx sensitivity | −5.2 dBm stressed OMA per lane |
| Rx overload / max input | Damage threshold 3.8 dBm; max input 3.4 dBm |
| Extinction ratio | 2 dB per lane |
| Supply voltage | 3.3 V (3.135–3.465 V) |
| Power dissipation | < 3.5 W |
| Operating temperature | Commercial |
| Diagnostics | I2C management interface per QSFP28 MSA |
| Compliance | RoHS-6 (2011/65/EU) |
| Lifecycle | Current production |
| Variant note | R = 100G Ethernet max bit rate (103.1 Gb/s), G = 4x25G coarse SWDM optics, P = pull-tab release, L = LC receptacles |
Optical and electrical values are from the Finisar / Coherent family datasheet; temperature grade is per part number. Confirm critical values with us before ordering.
About the Finisar FTLC9152RGPL
The Finisar FTLC9152RGPL (now a Coherent Corp. product, formerly II-VI) is a QSFP28 100G SWDM4 optical transceiver for 100 Gb/s links at SWDM 850-940nm over MMF duplex (LC), with reach up to 100m (OM4) / 150m (OM5). It is a commercial-temperature part. Typical uses: 100G Ethernet data-centre fabrics, DCI, metro aggregation and InfiniBand EDR.
- Hot-pluggable QSFP28 form factor
- 100G over duplex multimode fiber (SWDM4)
- Single 3.3V power supply
- I2C management interface
FTLC9152RGPL: frequently asked questions
What is the Finisar FTLC9152RGPL?
The FTLC9152RGPL is a Finisar QSFP28 transceiver for 100G SWDM4 at 100 Gb/s. Finisar is now part of Coherent Corp. (formerly II-VI), and the part number is unchanged. It is used for 100G Ethernet data-centre fabrics, DCI, metro aggregation and InfiniBand EDR.
What is the maximum distance of the FTLC9152RGPL?
The FTLC9152RGPL is specified for up to 100m (OM4) / 150m (OM5) over MMF duplex (LC). Long-reach optics may need an attenuator on short links; we can advise based on your link loss.
What is the optical power budget of the FTLC9152RGPL?
Per the Finisar family datasheet, the FTLC9152RGPL has a receiver sensitivity of −5.2 dBm stressed OMA per lane. Maximum receiver input is Damage threshold 3.8 dBm; max input 3.4 dBm.
Does the FTLC9152RGPL support DDM / digital diagnostics?
Yes. I2C management interface per QSFP28 MSA. Your switch can read live temperature, voltage, laser bias and Tx/Rx power.
Which fiber and connector does the FTLC9152RGPL use?
The FTLC9152RGPL works at SWDM 850-940nm over MMF duplex (LC). Both ends of a link must use the same optical standard.
Will the FTLC9152RGPL work in my Cisco, Juniper, Arista or HPE switch?
The FTLC9152RGPL follows the QSFP28 MSA, so it fits any matching port. It carries Finisar's own EEPROM programming; switches that check the module vendor may need a configuration setting or a vendor-branded optic. Send us your switch model and we confirm before dispatch.
What temperature range is the FTLC9152RGPL rated for?
The FTLC9152RGPL is a commercial-temperature part. Choose an industrial (T) variant for outdoor or uncontrolled sites.
What does the FTLC9152RGPL part number mean?
The FTLC prefix marks Finisar's 100G family (QSFP28 / CFP / CFP2 / CFP4). The C letter in the suffix usually marks the commercial temperature grade. The remaining characters identify the optical design and build variant.
Is your FTLC9152RGPL genuine Finisar?
Yes. Next Gen Networks supplies original Finisar / Coherent modules, not third-party lookalikes or grey-market stock, and shares serial numbers on request.
What is the FTLC9152RGPL price in India and how do I order?
The Finisar FTLC9152RGPL price in India depends on quantity, delivery city and current stock. Next Gen Networks supplies it with a GST invoice (input tax credit ready) and pan-India dispatch from New Delhi. Send the part number, quantity and delivery city on WhatsApp +91-7827955775 or email Sales@nextgennetworks.in for a GST quote.
What power does the FTLC9152RGPL need?
It runs from 3.3 V (3.135–3.465 V) with power dissipation of < 3.5 W.
Documents
NextGen datasheetPDF · specs, FAQ & buying guideManufacturer datasheet
Finisar / Coherent family datasheet
